Fallout maps are weather predictions, but they also symbolize something much more unknown: the way radioactive debris can drift in the atmosphere following a nuclear explosion at the ground-level, and how this risk is refined into something that spreads far beyond the impact point. A city boundary or state line is not the most significant element to any of these maps. It is the wind field.
The models, assumptions and a limited number of scenarios are used to construct many visuals of fallout that are oriented to the public. To read them, that is, to know what the map is actually saying, dose and time and the behavior of the particles and where uncertainty is most active doing its work.
What ensues disaggregates the pragmatics of U.S.-centered map of fallouts, what shelter is, and where survival ceases to be a table-reading game, and turns into a medical and infrastructure issue.
1. What a fallout map typically quantifies (and fails to quantify)
Most fallout maps are displays of the radiation dose during a specified time frame commonly in the form of an outdoor cumulative exposure. In one of the most commonly used U.S. simulations of silo-attacks, fallout is monitored at 48 hours and the cumulative dose in the field is summed over four days-a method that emphasizes where exposure may be most effective in case a person was kept outside or in poorly shielded buildings. The latter maps usually exclude immediate impacts at the locations of the detonations and they also fail to simulate the implications of disrupted healthcare, bottlenecks in evacuation, and polluted supply chains. Practically, the map can be interpreted as where the air and ground would be most polluted rather than where people would and will not live.
2. The first-order driver is wind direction rain can rewrite the entire footprint
Fallout distribution is a responsive system to the wind speed, wind shear and atmospheric stability. Any minor twist of the wind may force a high dose corridor to move between metro areas within a few hours. The concept of precipitation is important in that, rain may carry away the particles resulting in the radiation being concentrated nearer to the source or forming small, short-lived hotspots in the downwind. Particular models used in the public do not explicitly consider precipitation, which can cause a map to look more organized and visibly even than in reality. The lesson learned is that the target set can have enormous inadvertent effects on various downwind days, even in the same season.
3. Ground bursts do not cause a fireball problem only, but they pose a problem of dirt and debris
Maps dedicated to the case of missile-silo targets pay attention to the fallout due to the assumption about a need to make the target detonation of ground-levels. Ground bursts drill soil and building materials and kick them out into a radioactive cloud to augment the quantity of radioactive material available to fall out over densely populated locations. One of the simulation models assumes that each attacked silo generates a 16.8 kilometer tall cloud of debris and relies on the particle-transport model of the movement of micro-sized particles and their accumulation. This point is critical to map readers: the fallout story is essentially one of contaminated particulates and their landing points, not of the radiation radiating out of a spot.
4. An average map is not an exemplary day of a particular community
Certain national maps are the most enlightening ones because they are constructed by running the same scenario each day over a number of days of weather data and averaging the results. As an example, a project was performed with 365 simulations (a day) of 2021 weather data output to visualize an average outdoor dose pattern. The technique is convenient in determining areas regularly in the downwind in most conditions, although it can conceal extremes: the average can underestimate the worst-case corridor of a given city on a given day. In the case of personal or community preparedness, the question of operation is not what on average happens, but whether a particular area is credibly downwind in typical wind regimes-and how fast the warning and sheltering may commence.
5. The dose limits on maps are linked with the actual clinical syndromes
Explicitly or implicitly, color bands and contour lines tend to be aligned with health thresholds. It is also clinically advised that the full bone marrow syndrome typically takes place with whole body doses of 0.7-10 Gy, gastro intestinal syndrome often accompanies doses above about 10 gy, and cardiovascular/central nervous system syndrome often accompanies doses above about 50 gy. The significance of these categories is that they alter the definition of the term survival: once some exposures are made, short-term sheltering turns into the less critical factor, whereas fast access to complex medical care (infection control, transfusion, growth factors, intensive supportive treatment) becomes more critical. Fallout maps can give a hint of the possible location of a severe exposure; they cannot assure the capacity of treatment where treatment would be required.
6. The most operative is shelter, but it is not everything or nothing

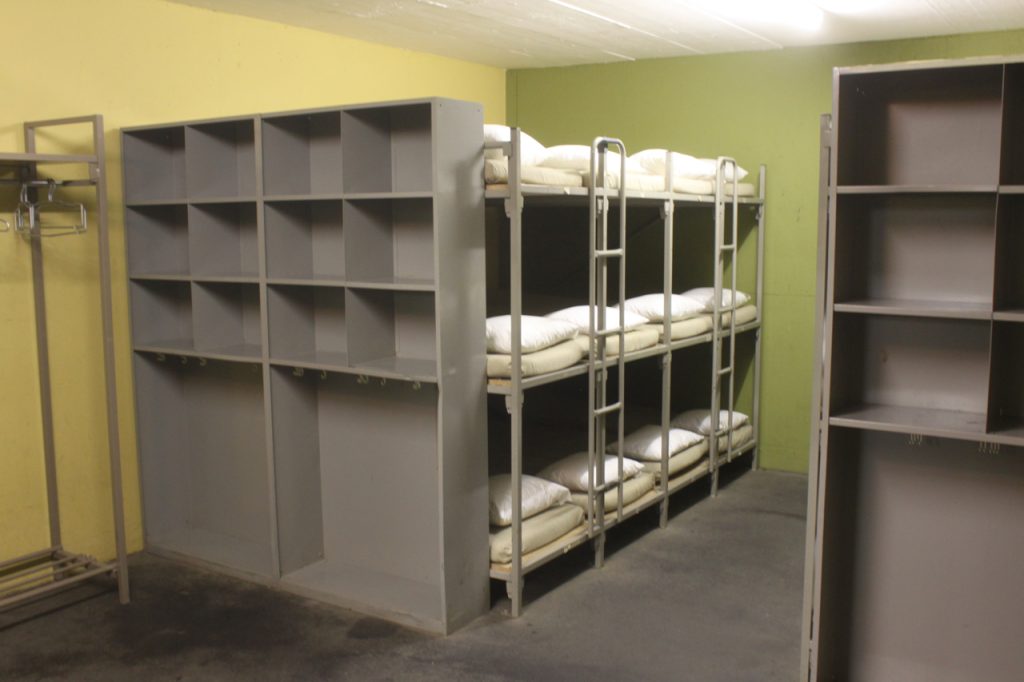

Most of the modeled fatality estimates assume that individuals will be able to shelter with food and water over a few days; one of the calculations actually caters to the fact that people are capable of sheltering and yet still results in high mortality under the conditions of the modeled scenario. The effectiveness of shelter will be based on how far an individual is to external walls, the weight between the individual and the exterior (concrete, earth, books, water), and the ability of a building to restrict the entry of dust. It is not that any basement would preserve them all, but that decreasing inhalation and external exposure during the peak of intensity may cause dose reduction to change dramatically. Shelter may shift one into a survivable band, where he was in a life-threatening band; it does not alter the band.
7. The term safe states is inappropriate; downwind risk travels across the borders at high speed
Labels on a state level promote a sense of uniqueness. Fallout corridors run with the wind and within the initial two days the areas of high risk may run through many states and even into Canada. Certain national-scale simulations explicitly provide consequences in the United States and Canada based on typical wind patterns, supporting the fact that the topography in question is meteorological, rather than political. One of the most effective methods of reading any map is to determine the patterns of prevailing wind of an area and whether there are large sets of upwind targets. That method remains rooted in physics and not the lists of the best places to be.
8. Preparedness maps for nuclear plants are not interchangeable with wartime fallout maps

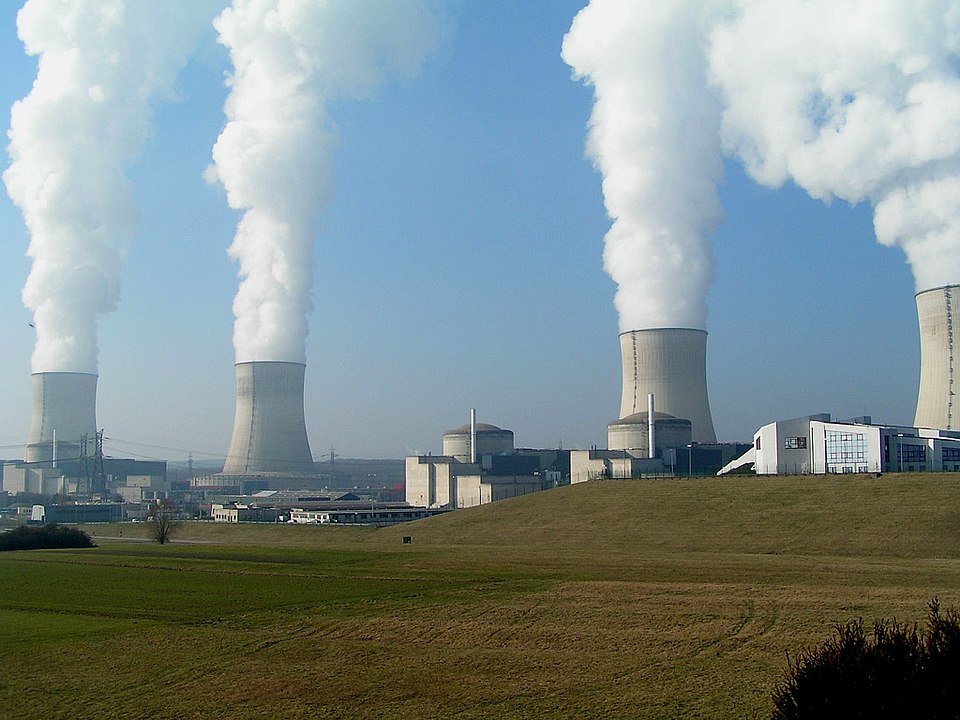

FEMA’s radiological planning work is largely oriented around commercial nuclear power plant incidents, with standardized planning assumptions, training and coordination frameworks for jurisdictions near plants. FEMA also maintains a national public information map intended to connect users to radiological preparedness resources. These tools can strengthen local readiness communications, coordination, and protective action planning but the hazard profile differs from a widespread, multi-detonation fallout scenario. For map readers, the key is to avoid mixing guidance designed for fixed-site accidents with interpretations drawn from strategic-target fallout modeling.
9. Realistic survival limits extend beyond radiation: food systems can become the long pole
Fallout maps focus attention on the first days, but research on nuclear-winter scenarios shows why longer-term survival cannot be inferred from short-range dose contours alone. Modeling led by Penn State researchers found that a regional nuclear war scenario injecting 5.5 million tons of soot could reduce global annual corn production by 7%, while a large-scale scenario with 165 million tons could drive an 80% drop in annual yields, with additional UV-B impacts pushing worst-case declines further. Those numbers describe systemic fragility: even populations far from heavy fallout could face food insecurity if agriculture and supply chains destabilize. In other words, a low-dose area on a U.S. fallout map does not automatically translate into long-term livability if broader climate and food-production shocks unfold.
America’s fallout maps are best read as decision aids about time, wind, and exposure pathways, not as relocation guides. Their most reliable message is simple: downwind risk can be widespread, fast-moving, and sensitive to weather. Where maps stop being useful is where medicine, shelter quality, communications, and food systems begin to dominate outcomes. Those constraints define the realistic limits of “survival” far more than a single contour line.
